Marine Plywood Marine Plywood

Architwood Marine Plywood is specially treated plywood that is designed to resist rotting in a high moisture environment. It is bonded with undiluted Phenol Formaldehyde Resin at extremely high temperature and pressure. Therefore, this plywood can take extreme changes in temperature, humidity and alternate wetting and drying which are all the prerequisites for plywood used in marine applications. Being powder proof it guarantees protection against borer & termites. This marine plywood is strong enough to withstand excess load, thrust and vibrations. It is dimensionally stable and stronger than the others.

Areas of Application

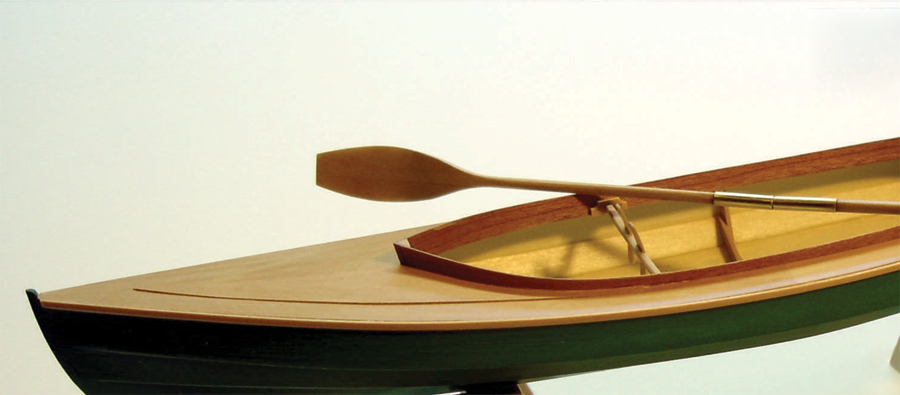

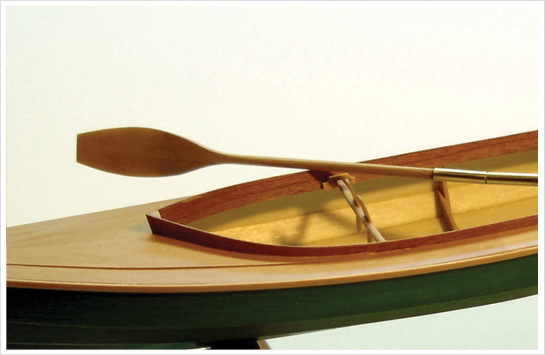

Construction & maintenance of marine, river crafts & sail boats, etc .It can be used in public hoardings, sign boards, tea weathering troughs, cooling towers & jetties, portable cabins, shelters exposed to severe conditions as well as structural application.

S.No. Test IS : 710 Requirement Architwood Results
1. Moisture Content 5-15% 9.2%
2. Glue Shear Strength in Dry Condition 1.Individual Min 1100 Newton
2.Average Min. 1350 Newton
1250 Newton
1680 Newton
3. Glue Shear Strength after Wet Condition 1.Individual Min. 800 Newton
2.Average Min. 1000 Newton
1200Newton
1440 Newton
4. Glue Shear Strength in mycological test 1.Individual Min. 800 Newton
2.Average Min. 1000 Newton
1100 Newton
1200 Newton
